2023 Columbia Vehicle Group CUSTOM PLATFORM Heavy Duty
Get in Touch
Description

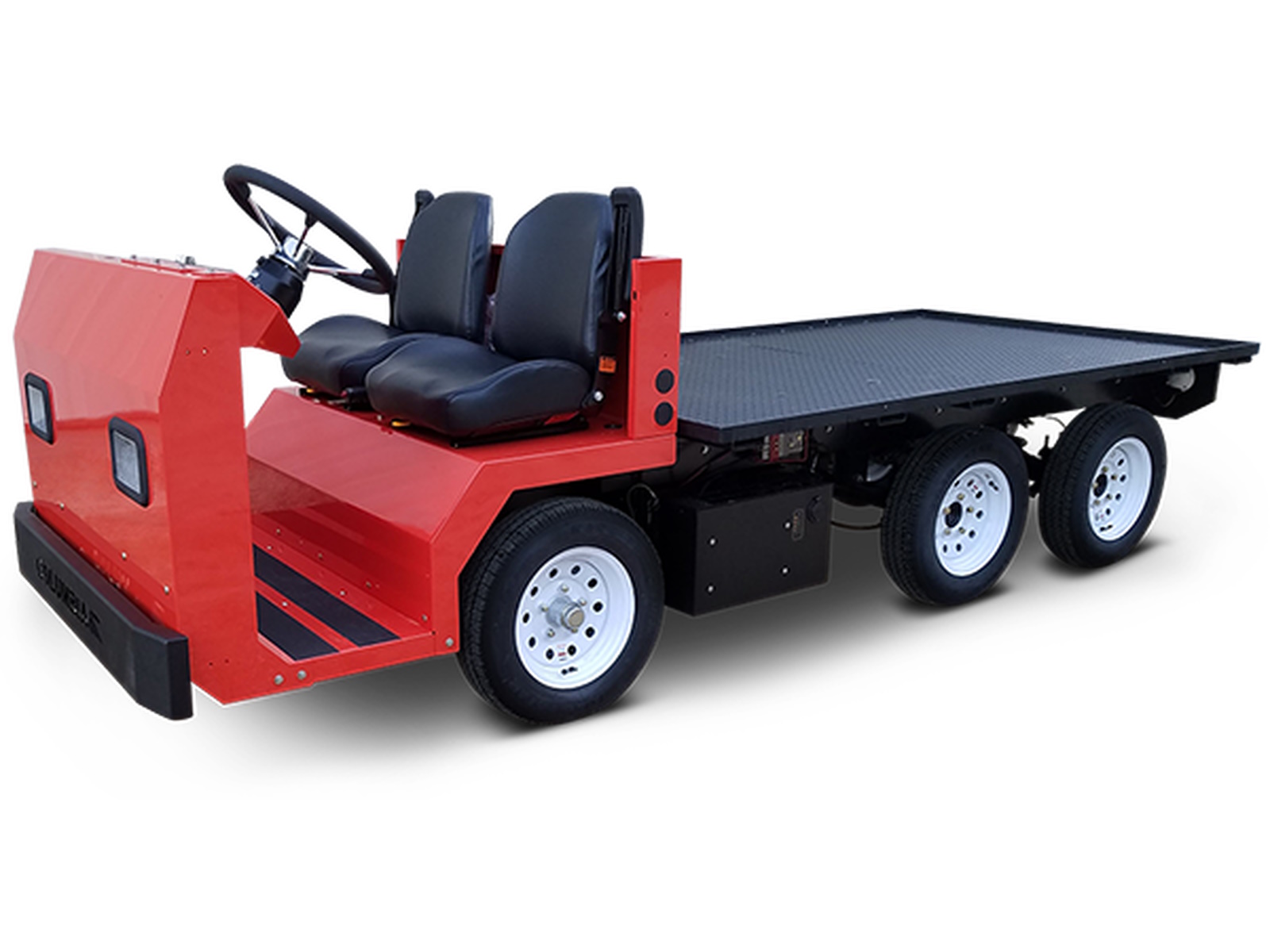

2023 Columbia Vehicle Group CUSTOM PLATFORM Heavy Duty
Columbia's most versatile custom platform is available in several axle, battery and drive configurations, which makes it the ultimate platform on which a vehicle configured specific to your needs and application can be customized.
Features May Include:
- Bed Length 96"
- Steel box beam frame
- Front and rear steel bumpers
- Perfect platform for customization
- Dual head and tail lights
- Adjustable bucket seats
- Class H motor insulation
Info
Industry
Golf Cars
Make
Columbia Vehicle Group
Model
CUSTOM PLATFORM
Trim
Heavy Duty
Year
2023
MSRP
N/A
Category
Golf Car
Subcategory
Utility
Specs
Ground Clearance
5 in.
Top Speed (Level)
15 MPH
Turning Radius/Circle
368 in. Curb-to-curb
Weight (Dry)
1,780 lbs.
Tow Capacity
6,000 lbs.
Motor
Totally enclosed, NEMA class H temperature rated motor
Horsepower/kW
Totally enclosed, NEMA class H temperature rated motor
Battery
Eight, 6 volt, 232 amp hour, 122 minute
Battery Charger
Built in, micro-processor control, fully sealed, anti-drive away interlock, 110-240 VAC, 50 / v60 HZ
Seating
Adjustable bucket seats with arm rests
Body/Finish
14-gauge structural steel smooth plate front body panels
Chassis/Frame
Structural steel channel rail style chassis
Steering
Hydraulic pump and piston, manually operated
Service Brake
Hydraulic brakes, Front disc/rear drum, Hand operated parking brake
Suspension
Semi-independent with leaf springs
Tires
145/R12 radial pneumatic tires 21” x 5.5” x 12”
