2023 Columbia Vehicle Group Stockchaser 48 Volt
Get in Touch
Description

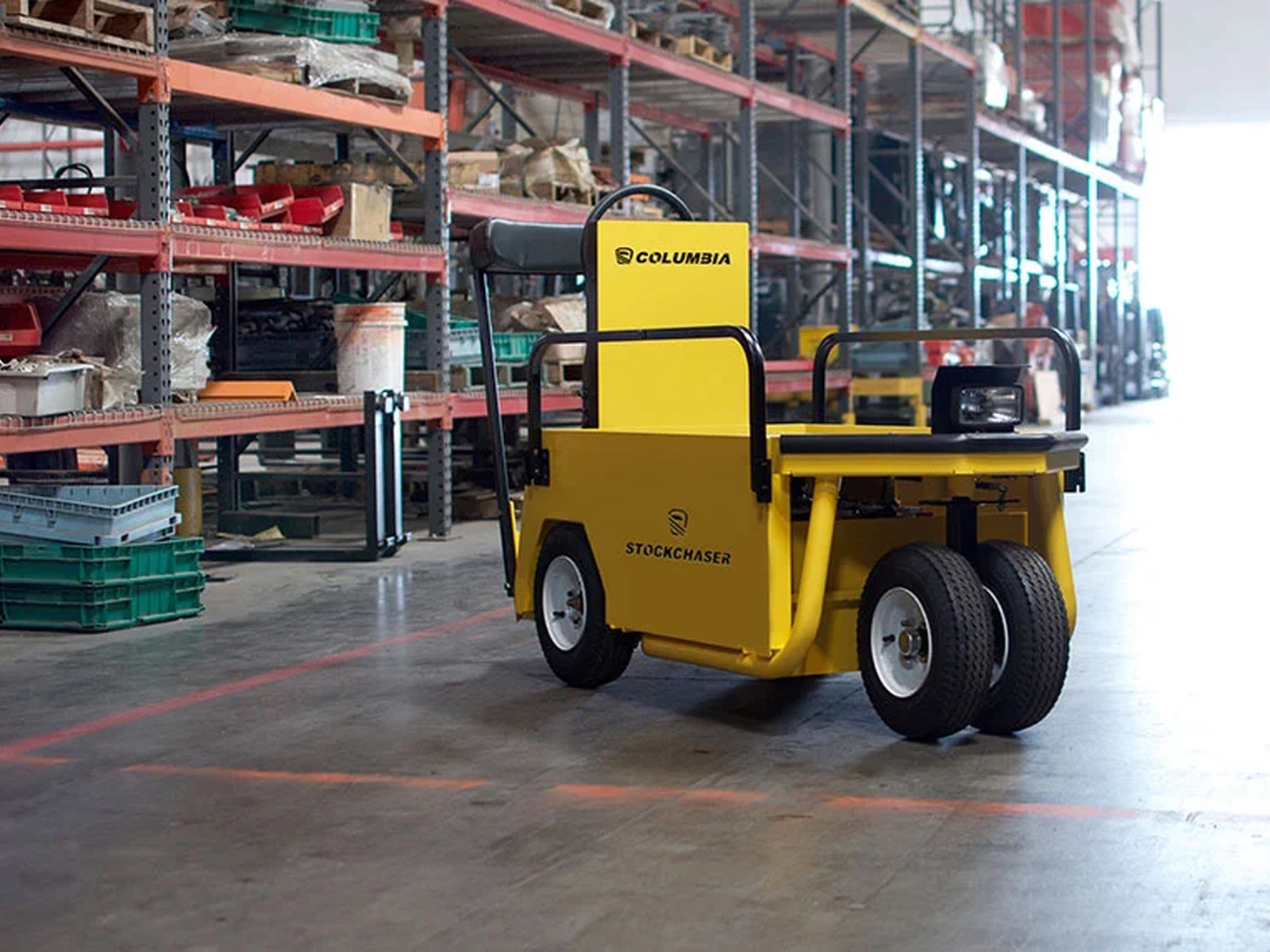

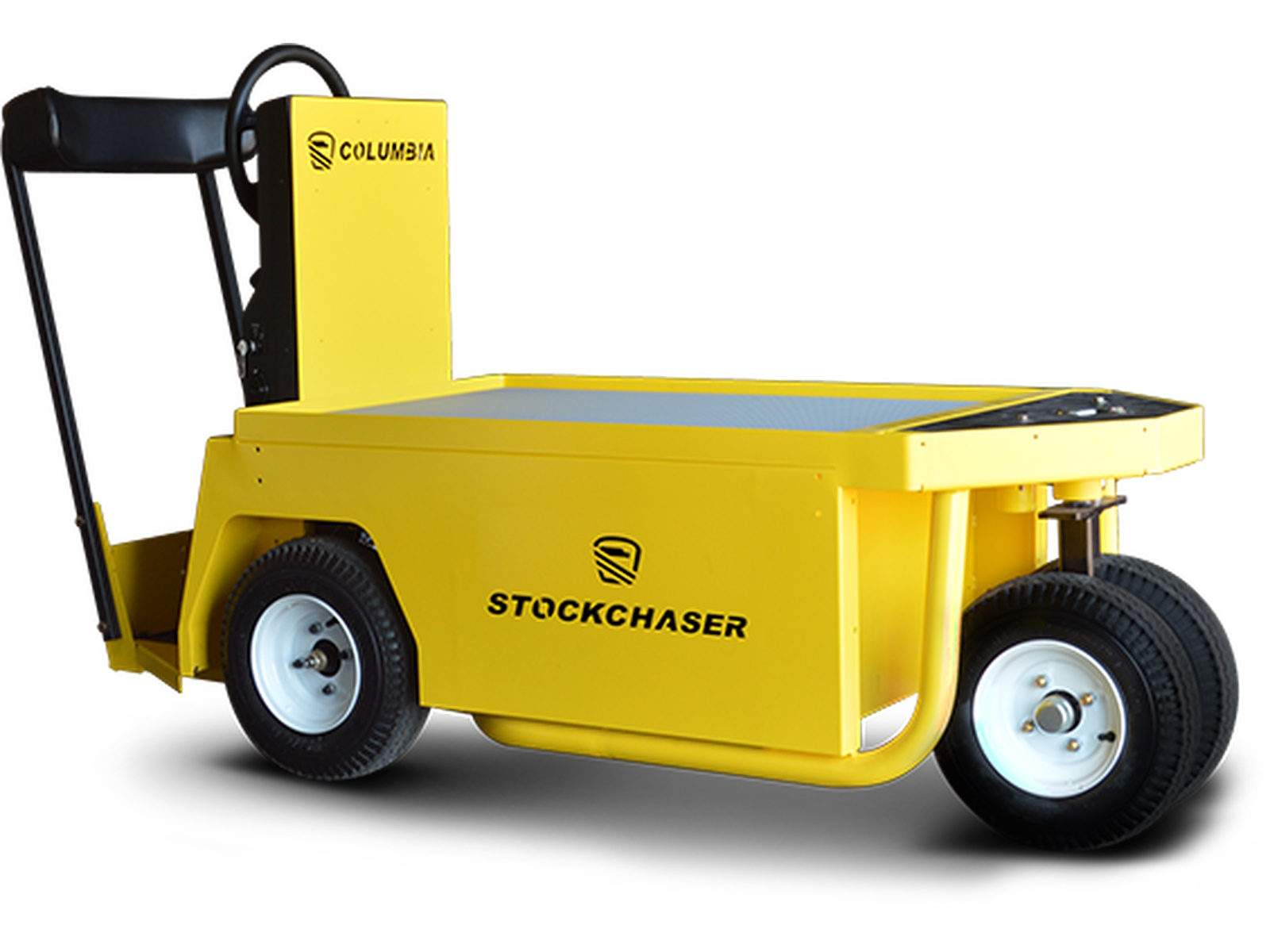

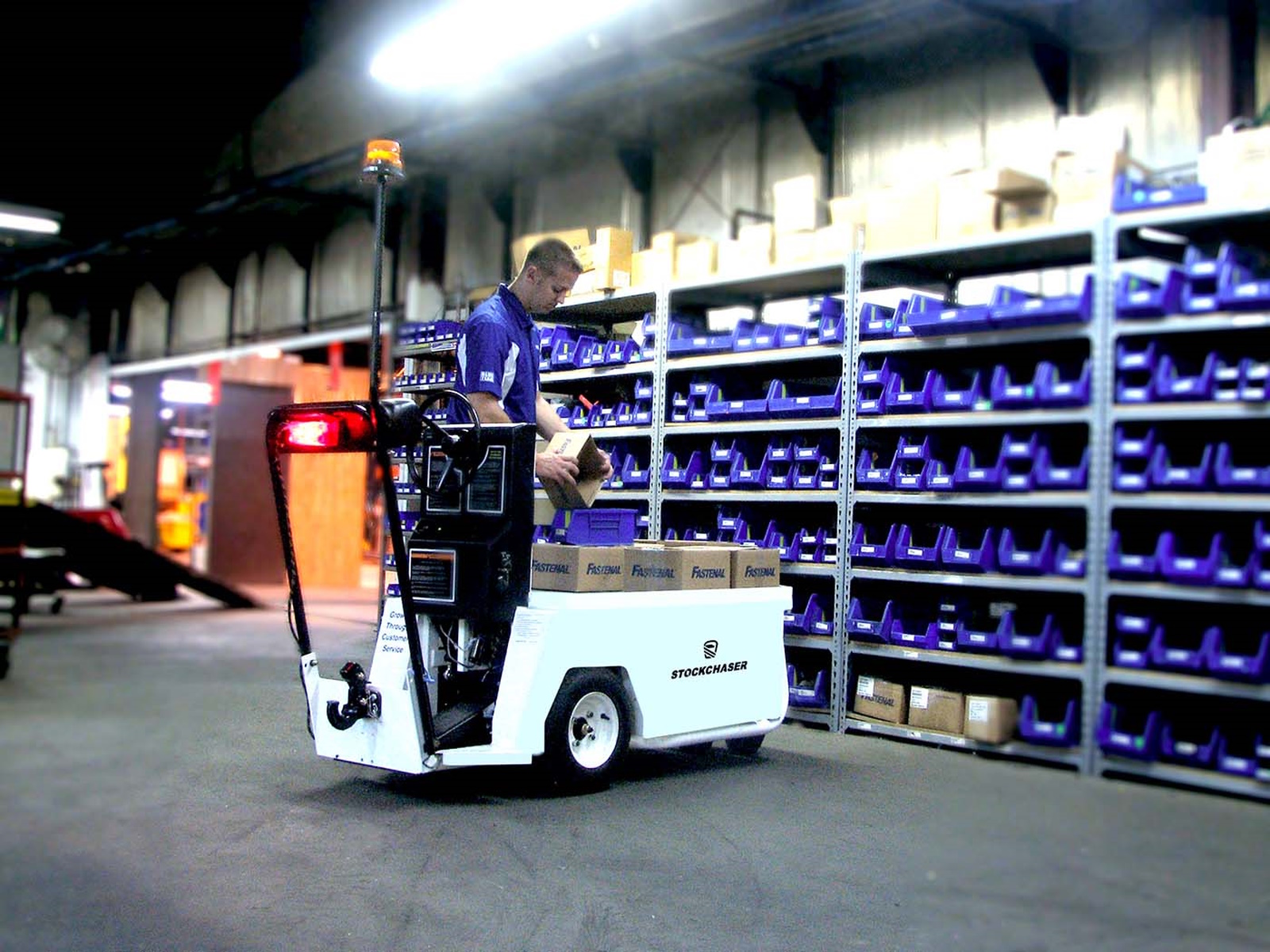

2023 Columbia Vehicle Group STOCKCHASER 48 Volt
The adjustable backrest and stand-up operation provide a safe and comfortable position for the driver while a tubular steel chassis and steel body panels make it as rugged as it is maneuverable. And, with its standard dual tire front fork, it's the most stable narrow aisle burden carrier available on the market today. For extra heavy tasks, an optional up-fit package increases the Stockchaser’s towing capacity to 6,000 lbs, making it uniquely suited to moving incredibly heavy loads through narrow spaces.
Features May Include:
- Extremely short turning radius
- Tubular steel frame
- Horn
- Dual front wheels standard
- Adjustable backrest
- Available rapid battery exchange
- Narrow-aisle operation
- Class H motor insulation
Info
Industry
Golf Cars
Make
Columbia Vehicle Group
Model
Stockchaser
Trim
48 Volt
Year
2023
MSRP
N/A
Category
Utility Vehicle
Subcategory
Other
Specs
Top Speed (Level)
9 MPH
Turning Radius/Circle
66.5 in
Weight (Dry)
990 lbs
Tow Capacity
Up to 1,000 lbs. (Up to 6,000 lbs. with towing package)
Motor
24 & 48 Volt, NEMA class H temperature-rated, separately excited
Horsepower/kW
15.3 HP at 1750 RPM
Battery
Eight 6 volt, 232 amp hour, 122 minute, deep-cycle
Battery Charger
Built-in, micro-processor controlled, fully sealed, global, 110 - 240 VAC, 50/60 HZ
Seating
Stand-up operation, adjustable padded back rest
Body/Finish
14-gauge powder coated structural steel smooth plate body
Chassis/Frame
Heavy duty welded steel chassis with 14 gauge structural steel smooth plate body
Steering
Dual front fork, direct link mechanical
Service Brake
Dual mechanical rear drum, Automatically engaged upon dismount
Suspension
Rigidly Mounted
Tires
4.80” X 8”, pneumatic, 4-ply rated, load range B tires mounted on painted steel rims
